Bitumen Sprayer / Bitumen Pressure Distributor
Precision Bitumen Application for Road Construction

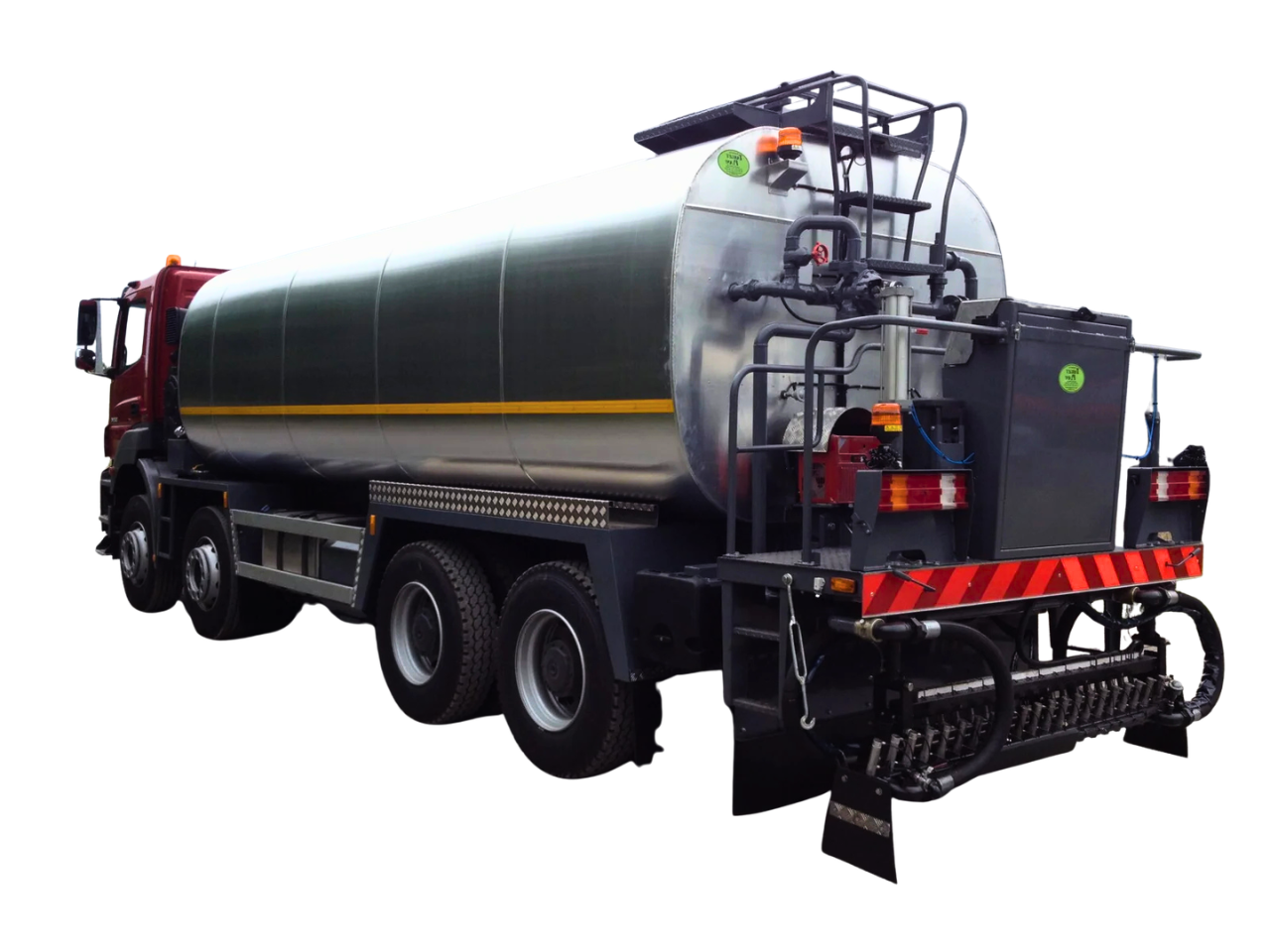

The Comix Bitumen Sprayer, also known as a Bitumen Pressure Distributor, is a precision-engineered truck-mounted bitumen application machine that delivers continuous, uniform, and accurately controlled bitumen or emulsion spraying on road surfaces.
Available in capacities from 3,000 to 12,000 litres, the Comix Bitumen Sprayer combines automated speed-linked spray control, a heated insulated tank, and a pneumatically operated foldable spray bar for efficient bitumen distribution.
What is a Bitumen Sprayer / Bitumen Pressure Distributor?
A Bitumen Sprayer, also called a Bitumen Pressure Distributor or Bitumen Distributor Machine, is specialised road construction equipment used to spray a controlled and uniform quantity of hot bitumen or bitumen emulsion onto prepared road surfaces. It is used for prime coat, tack coat, surface dressing, penetration macadam, fog seal, slurry seal, shoulders, footpaths, and other road maintenance applications.
Why Choose the Comix Bitumen Sprayer?
Comix Bitumen Sprayers are designed for precision application, automated spray control, reliable heating, chassis flexibility, and easy maintenance on road construction sites.
Precision Bitumen Application
Delivers continuous, unbroken, and uniform spraying at a controlled application rate across the full spray bar width.
Automatic Speed-Linked Control
Automatically adjusts bitumen flow according to truck speed to maintain the correct application rate per square metre.
High-Efficiency Heating System
Imported burner and insulated tank maintain correct bitumen temperature for consistent viscosity and spray quality.
Wide Capacity Range
Available from 3,000 litres to 12,000 litres for small maintenance jobs as well as large highway projects.
Truck Chassis Flexibility
Available as a module for customer chassis or as a complete truck-mounted turnkey unit.
Foldable Spray Bar
Pneumatically operated horizontal spray bar with 2.5 m base width, extendable up to 4.2 m.
Manual Hand Spraying Attachment
Standard hand spray attachment enables precise application in corners, kerbs, junctions, and hard-to-reach areas.
Pressure Cleaning System
Built-in cleaning system purges pump, lines, spray bar, and nozzles to prevent blockage and downtime.
Safe & Easy Operation
Remote control station allows safe operation away from hot bitumen while keeping controls simple and user-friendly.
Why Road Contractors Choose Comix Bitumen Sprayers
Comix Bitumen Sprayers combine accurate application, rugged construction, field-friendly operation, and dependable service support.
How Does the Comix Bitumen Sprayer Work?
The Comix Bitumen Sprayer follows a controlled process from tank filling to application and cleaning.
Step 1 - Tank Filling
The built-in loading system fills the insulated tank from a bulk bitumen source, and the burner heats bitumen to spray temperature.
Step 2 - Pre-Spray Setup
The operator selects the required application rate and unfolds the spray bar to the needed working width.
Step 3 - Spray Operation
As the truck moves, speed detection automatically controls pump output to maintain uniform bitumen application.
Step 4 - Manual Application
The hand spray attachment is used for junctions, structures, kerb lines, and areas the main spray bar cannot reach.
Step 5 - End-of-Day Cleaning
The pressure cleaning system flushes the full bitumen circuit, leaving pump, lines, spray bar, and nozzles ready for reuse.
Technical Specifications
Technical details of the Comix Bitumen Sprayer / Bitumen Pressure Distributor.
| Specification | Details | Remarks |
|---|---|---|
| Equipment Type | Truck-Mounted Bitumen Sprayer / Pressure Distributor | For road bitumen and emulsion spraying |
| Tank Capacity Range | 3,000 to 12,000 Litres | Multiple capacities for different project sizes |
| Availability | Module / Complete Unit | Customer chassis or complete truck-mounted supply |
| Tank Insulation | Fully Insulated Tank | Industrial steel with Cera / Glass Wool insulation |
| Tank Cladding Options | G.I. / Aluminium / Stainless Steel | Choose based on durability and finish preference |
| Heating System | High-Capacity Imported Burner | Built-in bitumen heating system |
| Engine | 25 HP Air-Cooled Two-Cylinder Diesel Engine | Independent power for spray operations |
| Pump Type | Positive Displacement Internal Gear Type Asphalt Pump | Accurate bitumen metering and flow control |
| Air Compressor | Standard Onboard Air Compressor | For pneumatic spray bar operation |
| Spray Bar Width | 2.5 m Base - Extendable to 4.2 m | Foldable and field extendable |
| Nozzle Pitch | 225 mm Standard | Uniform nozzle spacing |
| Spray Pressure Range | 0 to 6 kg/sq.m | Flexible application pressure range |
| Spray Bar Operation | Pneumatically Operated, Horizontally Folding | Easy folding and deployment |
| Hand Spray Attachment | Included as Standard | For manual application in restricted areas |
| Speed Control System | Automatic Speed Detection & Driver Control System | Maintains correct spray rate during speed variation |
| Cleaning System | Built-In Pressure Cleaning System | Prevents nozzle, line, and pump blockage |
| Remote Control | Remote Control Station | Standard operator safety feature |
| Bitumen Loading | Built-In Charging / Loading System | Self-loading from bulk tank or tanker |
| Application | Bitumen & Bitumen Emulsion | Suitable for prime coat, tack coat, fog seal and more |
Important Notes
- All specifications are subject to customization as per project requirements
- Capacity ratings are based on standard aggregate gradation
- Optional features available for specific requirements
- Compliance with international safety and environmental norms
- Delivery time: 4-6 weeks for domestic, 6-8 weeks for international
Customization Options
- Capacity customization (60-240 TPH)
- Fuel type options (Diesel, FO, Gas, Dual Fuel)
- Control system upgrades
- Additional pollution control systems
- Special configurations for extreme climates
Key Components of the Comix Bitumen Sprayer
Each component is designed for accurate spraying, safe operation, easy maintenance, and long service life.
Fully Insulated Bitumen Storage Tank
Industrial-grade steel tank insulated with Cera or Glass Wool to maintain bitumen temperature and minimise heat loss during operation.
High-Capacity Imported Burner & Heating System
Built-in burner heats bitumen to the required application temperature with high thermal efficiency and fuel-saving operation.
25 HP Air-Cooled Diesel Engine
Independent two-cylinder diesel engine powers the pump, compressor, and spray bar systems without relying on the truck engine.
Positive Displacement Asphalt Pump
Internal gear type asphalt pump provides accurate and consistent bitumen flow across varying viscosities and application rates.
Onboard Air Compressor
Dedicated compressor powers pneumatic spray bar folding, nozzle adjustment, and other air-operated controls.
Foldable Spray Bar
Horizontally folding spray bar with 2.5 m base width, extendable to 4.2 m, 225 mm nozzle pitch, and pneumatic operation.
Manual Hand Spraying Attachment
Flexible hose hand spray attachment supports bitumen application around kerbs, junctions, drainage structures, and tight corners.
Automatic Speed Detection & Spray Rate Control
Monitors truck speed and adjusts pump output in real time to maintain the required application rate per square metre.
Built-In Bitumen Charging / Loading System
Allows the tank to be filled directly from a bulk storage tank or tanker without external transfer equipment.
Pressure Cleaning System
Flushes pump, lines, spray bar, and nozzles after work to prevent hardening, blockage, and spray pattern issues.
Modular Design
The Bitumen Sprayer features a modular design that allows individual components to be easily configured, upgraded, or replaced based on specific project requirements. Key systems such as the bitumen tank, heating unit, pumping system, spray bar, and control panel are designed as independent modules, enabling flexible customization for different capacities, spray widths, and operational conditions.
This modular architecture simplifies installation, reduces maintenance downtime, and allows future expansion without major structural modifications. The design also ensures ease of transportation, faster assembly on site, and improved serviceability, making the sprayer adaptable for a wide range of road construction and maintenance applications.
Where Is the Comix Bitumen Sprayer Used?
Comix Bitumen Sprayers are used across road construction and maintenance operations that require accurate and uniform bitumen distribution.
Prime Coat Application
Applied over granular base or WBM before laying the first bituminous layer.
Tack Coat Application
Applied between bituminous layers to ensure bonding and prevent inter-layer slippage.
Surface Dressing / Chip Seal
Bitumen is sprayed before stone chipping for durable low-cost surface treatment.
Penetration Macadam
Used to distribute bitumen between coarse aggregate layers in PM construction.
Fog Seal
Light bitumen or emulsion application rejuvenates aged road surfaces and seals minor cracks.
Shoulders & Footpaths
Supports precise narrow-width spraying for shoulders, cycle tracks, footpaths, and service roads.
Trusted Manufacturer & Exporter of Bitumen Sprayers
Comix Road Equipments is a leading manufacturer and exporter of Bitumen Sprayers, supplying equipment to India, Africa, the Middle East, and Asian markets. Designed for easy mounting, reliable performance, and compliance with global standards, our sprayers are trusted by contractors and infrastructure developers worldwide.
Frequently Asked Questions - Bitumen Sprayer
Answers to common questions about Comix Bitumen Sprayers and Bitumen Pressure Distributors.
What is a Bitumen Sprayer used for in road construction?
A Bitumen Sprayer is used to apply a uniform and controlled quantity of hot bitumen or bitumen emulsion for prime coat, tack coat, surface dressing, penetration macadam, and fog seal operations.
What tank capacities are available in Comix Bitumen Sprayers?
Comix Bitumen Sprayers are available from 3,000 litres to 12,000 litres for small maintenance work through large highway projects.
Can the Comix Bitumen Sprayer be mounted on my own truck chassis?
Yes. It can be supplied as a module for customer chassis or as a complete turnkey truck-mounted unit.
How does the automatic speed control system work?
The onboard system monitors truck speed and adjusts bitumen pump output in real time to maintain the required application rate per square metre.
What is the working width of the spray bar?
The foldable spray bar has a base working width of 2.5 metres and can be extended up to 4.2 metres.
What types of bitumen and emulsion can the sprayer handle?
It can handle hot penetration grade bitumen such as VG-10, VG-30, VG-40 and bitumen emulsions including cationic and anionic types.
What is the pressure cleaning system and why is it important?
The pressure cleaning system flushes the pump, pipelines, spray bar, and nozzles to prevent bitumen hardening, blockage, and downtime.
Does the sprayer include a hand spray attachment?
Yes. Every Comix Bitumen Sprayer includes a manual hand spray attachment as standard equipment.
Where is Comix Road Equipments located?
Comix Road Equipments Pvt. Ltd. is based at Plot No. 507, Nr. Sardar Dairy, B/H RTO, Palavasana, Mehsana - 384003, Gujarat, India.
